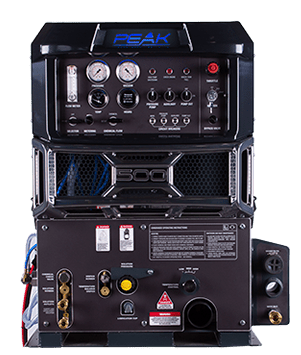

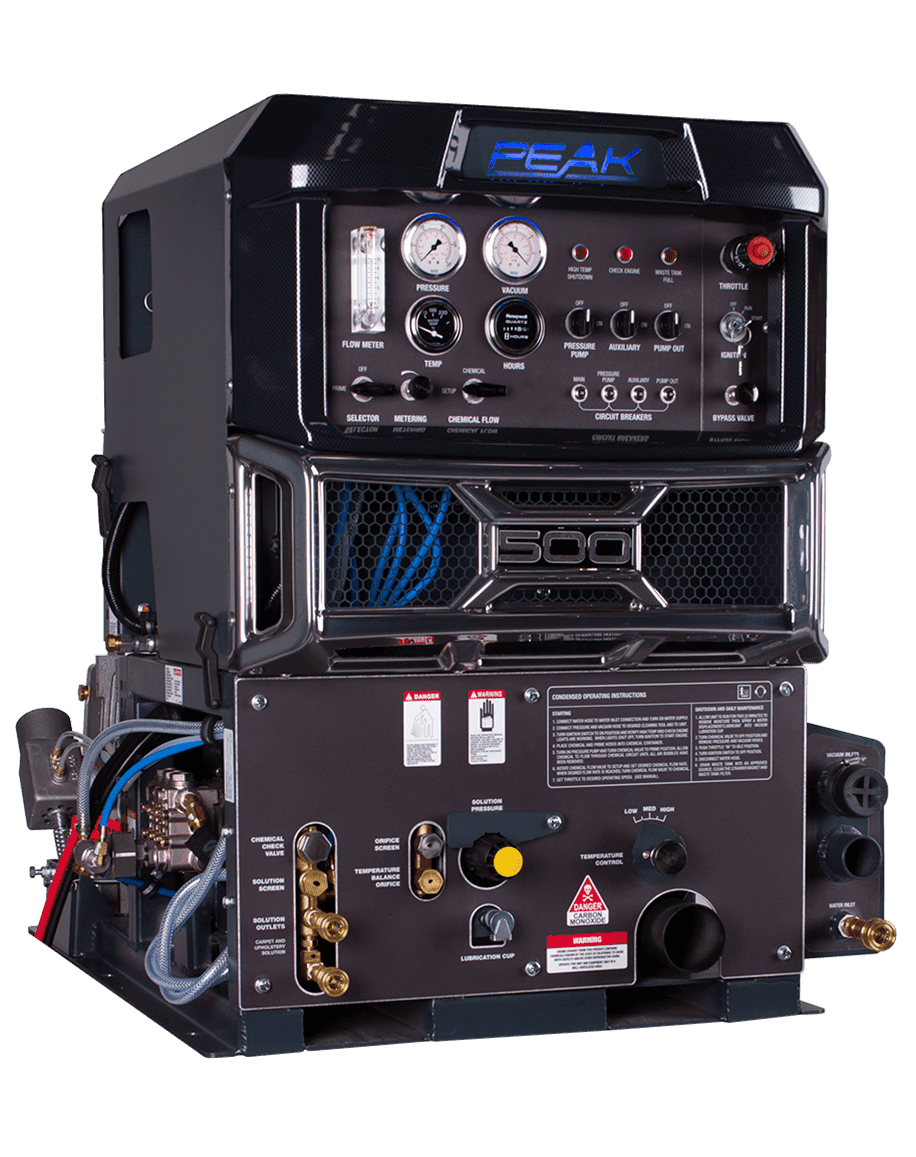

Peak 500 Truckmount **Please contact the store for pricing and installation**

All truck mounts need to be purchased in person.

Please contact the store at (623) 444-4263 to go over pricing and install fees.

There is currently a 3-4 month lead time on all machines.

Value-priced and 50-state CARB-compliant, this liquid-cooled unit delivers enough heat and vacuum to operate a six-jet wand flat out. Heats fast but sips fuel at only 1 gallon per hour. Lowest cost CARB-compliant machine in its class! Cerakote treatment on exhaust components reduces truckmount and van interior temps.

FEATURES • Fast warm-up period and holds the heat using 6-flow wand • Cerakote® treated exhaust reduces radiant heat from exhaust components up to 30% • Economical operation: consumes only 1 gallon of gas per hour • Stainless steel/copper finned tube coil design with manual adjustment control. Also features a plate engine coolant heat exchanger to preheat incoming water and reduces engine coolant temperature. • Easy to use manual temperature control • Corrosion-resistant all-aluminum powder coated frame • Engineered for easy service

SPECIFICATIONS • Power plant: Kawasaki FD851D-DFI liquid-cooled 31 HP engine with digital fuel injection and 47.1 ft-lbs of torque operating at 3000 RPM • Vacuum pump: Gardner Denver TriFlow 406 positive displacement blower with vacuum to 13 in. Hg and flows up to 406 CFM • Solution pump: General HTXS1813S water pump producing 3.5 GPM and up to 1500 PSI at 1450 RPM • Heating system: Stainless steel/copper finned tube coil design with manual adjustment control. Supplemented with a plate engine coolant heat exchanger. • Frame construction: Powder-coated aluminum box tubing • Dimensions: Console (W × H × D): 35 × 40 × 47 in. | 89 × 101.6 × 119.4 cm

SIZES ▪ OPTIONS • 106564 (72-500): Peak 500 with 90 gal. / 341 L waste tank • 108092 (72-500HC): Peak 500 with 120 gal. / 454 L waste tank.
