Apex 570 Truckmount **Please contact the store for pricing and installation**

 All truck mounts need to be purchased in person.

Please contact the store at (623) 444-4263 to go over pricing and install fees.

There is currently a 3-4 month lead time on all machines.

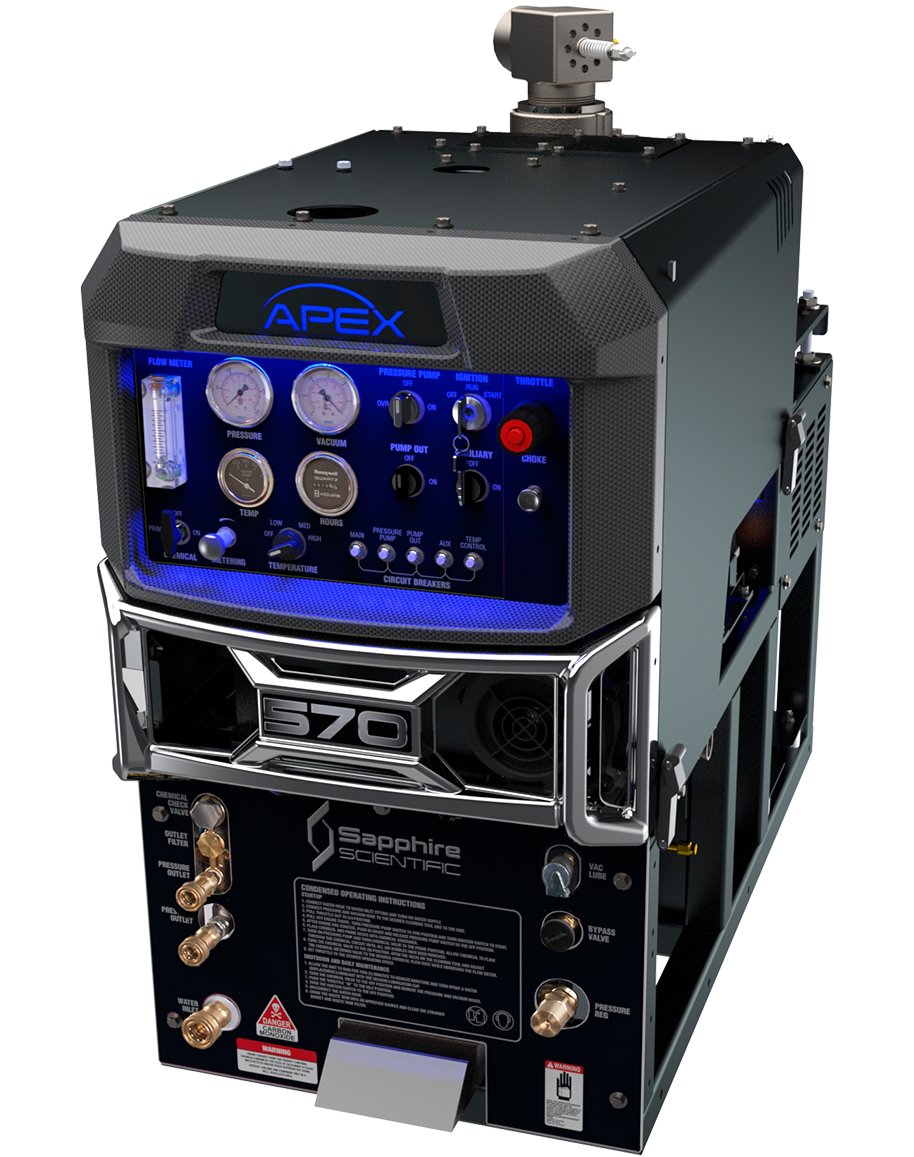

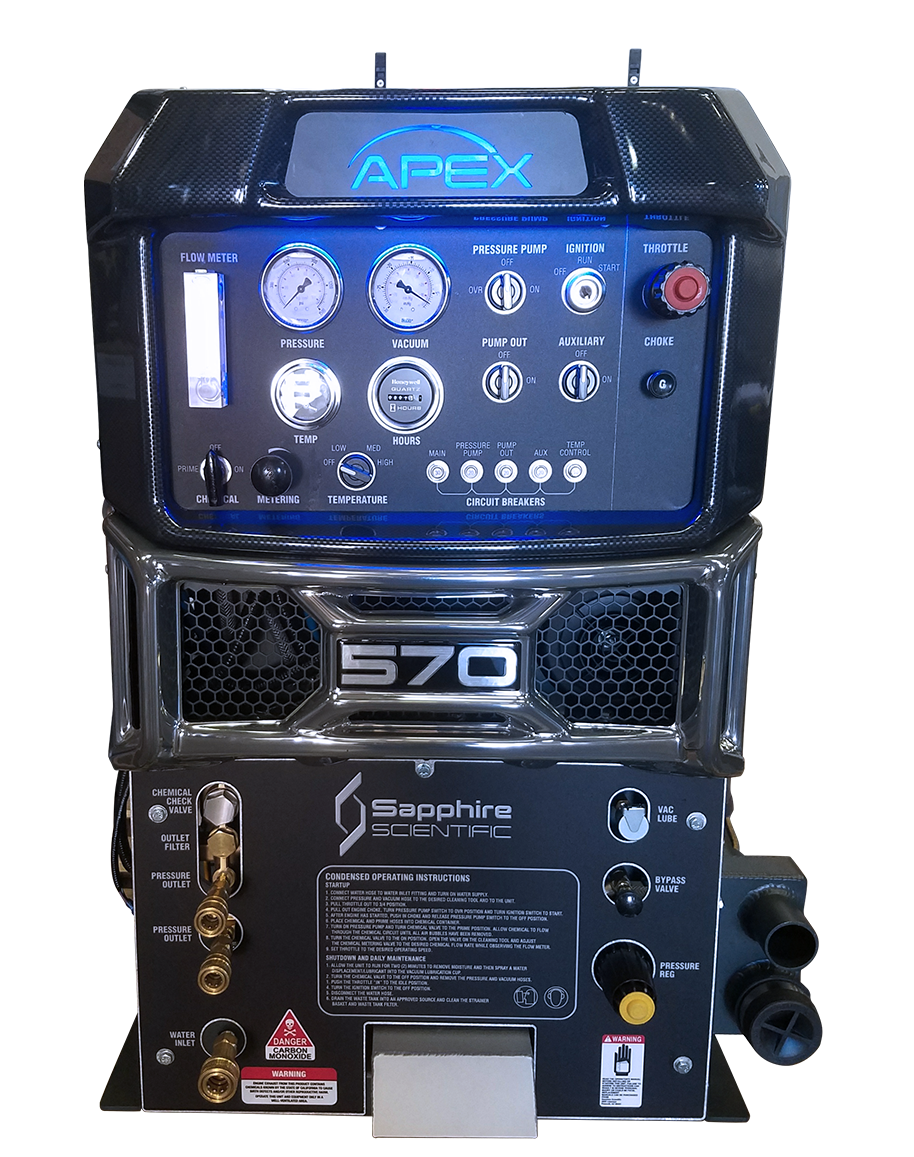

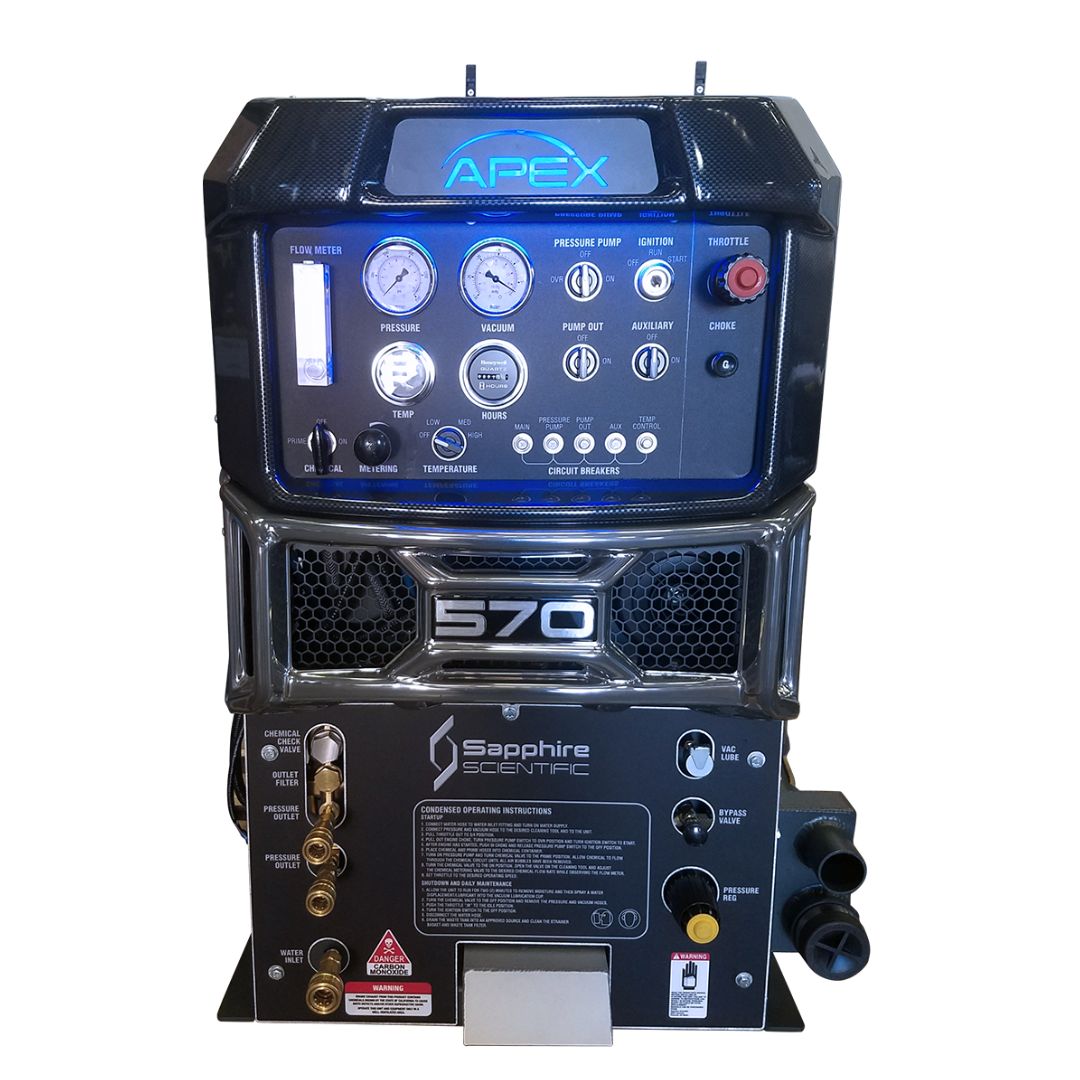

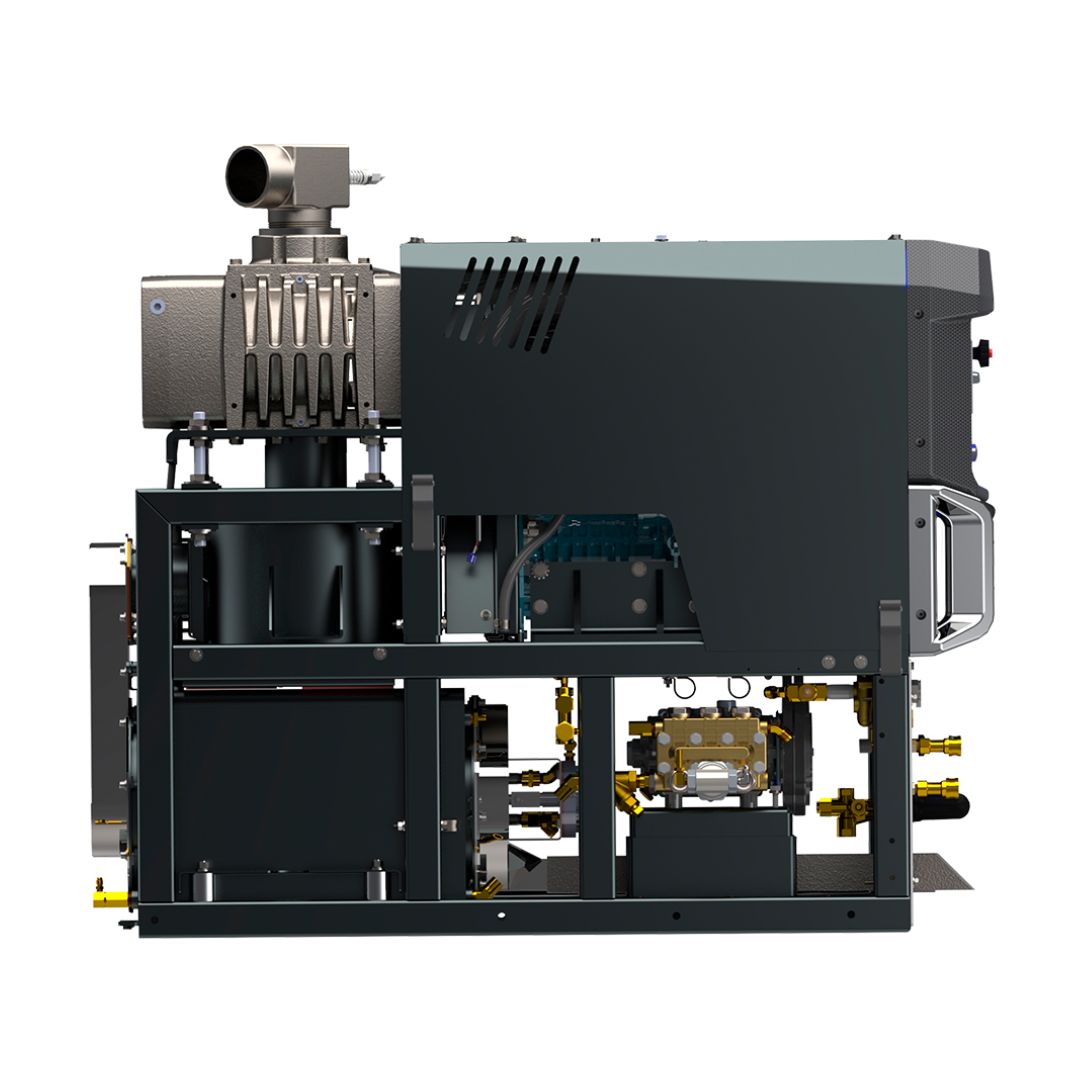

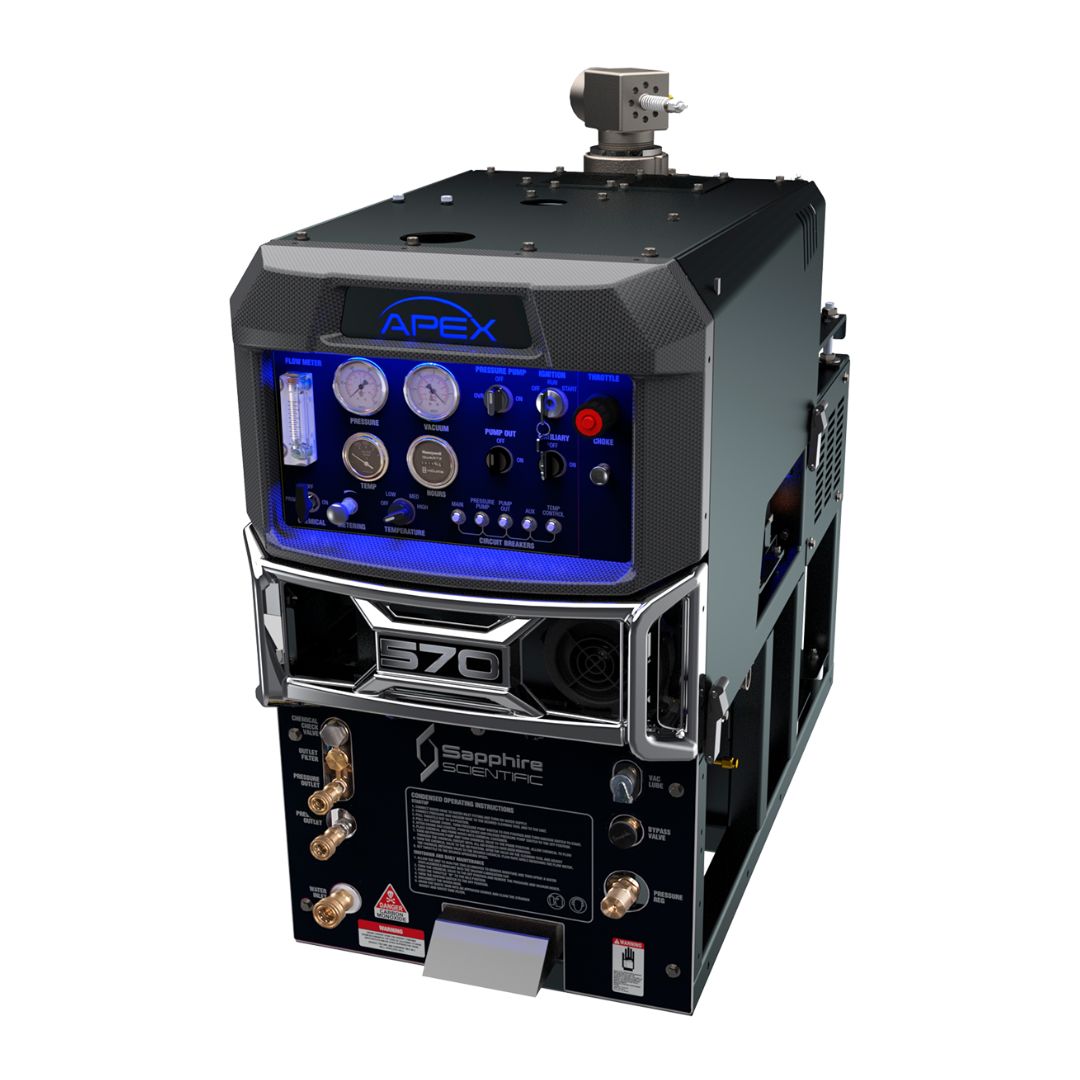

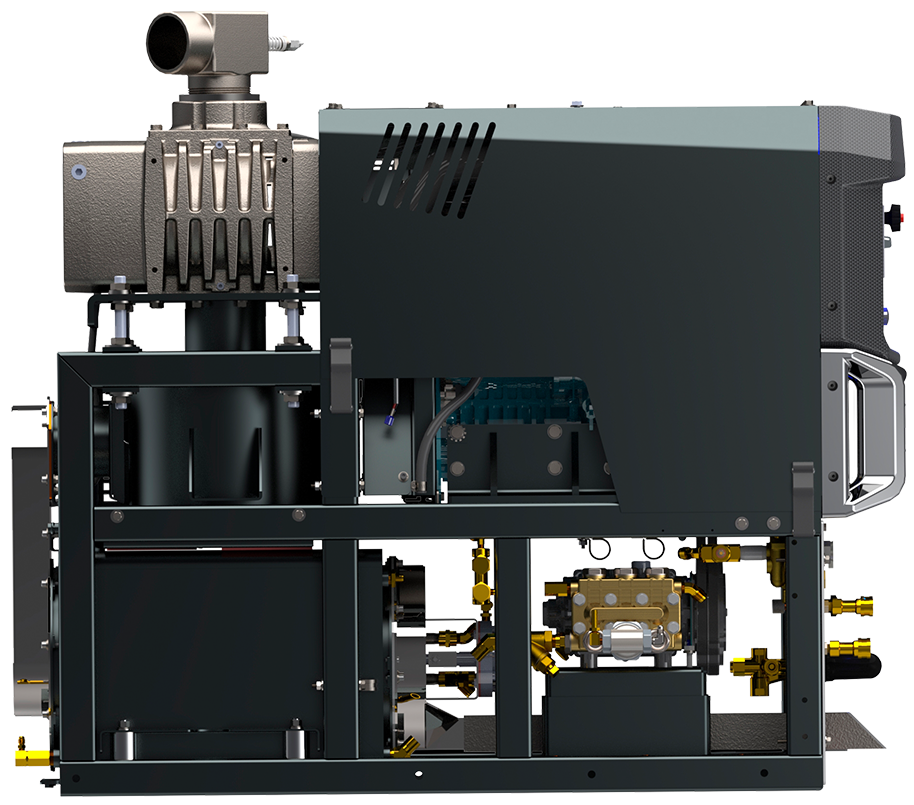

Powered by a liquid-cooled cast iron Kubota engine, this truckmount uses the patented Sapphire Scientific triple-source thermal well system to deliver consistent high heat. Cerakote ceramic coating lowers the heat radiation on all exhaust components by more than 30%—extends truckmount life and helps to keep van interiors cooler. (Not available in California.)

FEATURES • Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times • Through-frame drive belt cooling significantly reduces downtime by extending belt life • Cerakote ceramic coating on exhaust system minimizes heat and extends components' service life • Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution. • Easy-to-remove access panel and side hoods allows for quick service • Narrowest liquid-cooled slide-in on the market.

SPECIFICATIONS • Power plant: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM • Vacuum pump: Gardner Denver trilobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM. • Solution pump: General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM • Waste tank: 90 gal. marine grade aluminum. Optional: 120 gal. high capacity waste tank • Belt cooling: 100 CFM through-frame air injection system • Dimensions: Console (W × H × D): 22 × 43 × 50 in. | 56 × 109 × 127 cm • Frame construction: 0.125 in. × 2 in. powder-coated aluminum box tubing.
